Installing Snik

Follow these step-by-step instructions to securely install your Snik device inside your steerer tube.

What you will need:

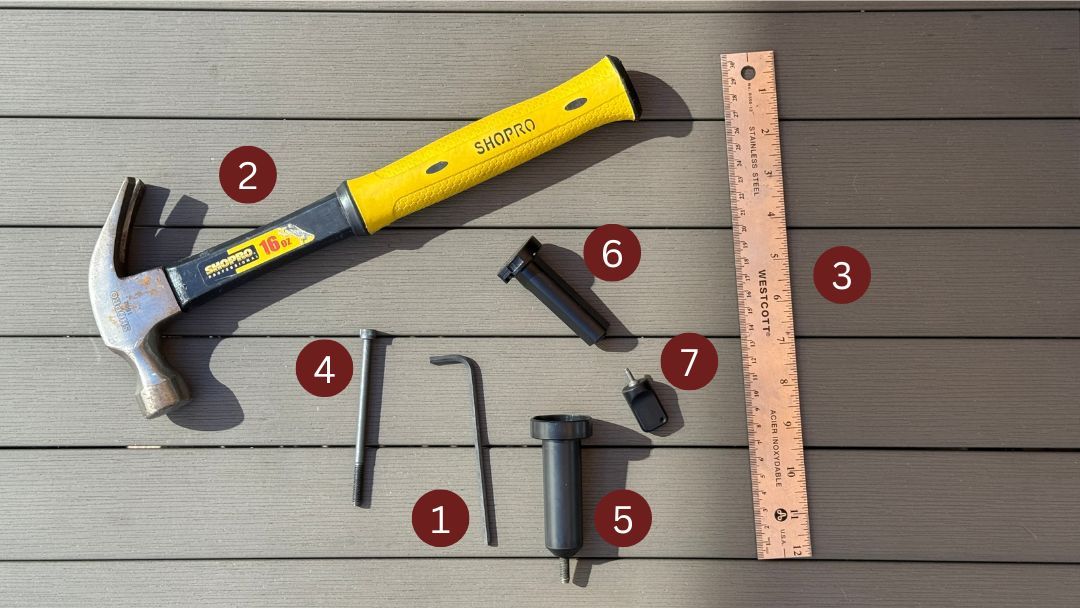

Install Snik Bike
Install Snik Bike
  1. 4 mm long -handle hex key
  2. Mallet or hammer
  3. Measurement Ruler
  4. Installation Bolt (D) *supplied
  5. Case (B) *supplied
  6. Snik Device (A) *supplied
  7. Key (C) *supplied

Before you start

CHECK YOUR FORK COMPATIBILITY — CRUCIAL

Snik is NOT compatible with:

Giant Overdrive 2 forks

RockShox “35” series forks

Cannondale Lefty forks

Forks with carbon steerer tubes



Measuring Your Steerer Tube

Most forks will work, but a few with very short steerers won’t. Minimum steerer tube lengths:

Fox forks (except 38): 190 mm

Fox 38: 210 mm

All RockShox forks: 210 mm



To measure: Take a ruler and measure from the underside of the fork crown up to the top of your spacer stack (or the top of the stem if no spacers are above it).

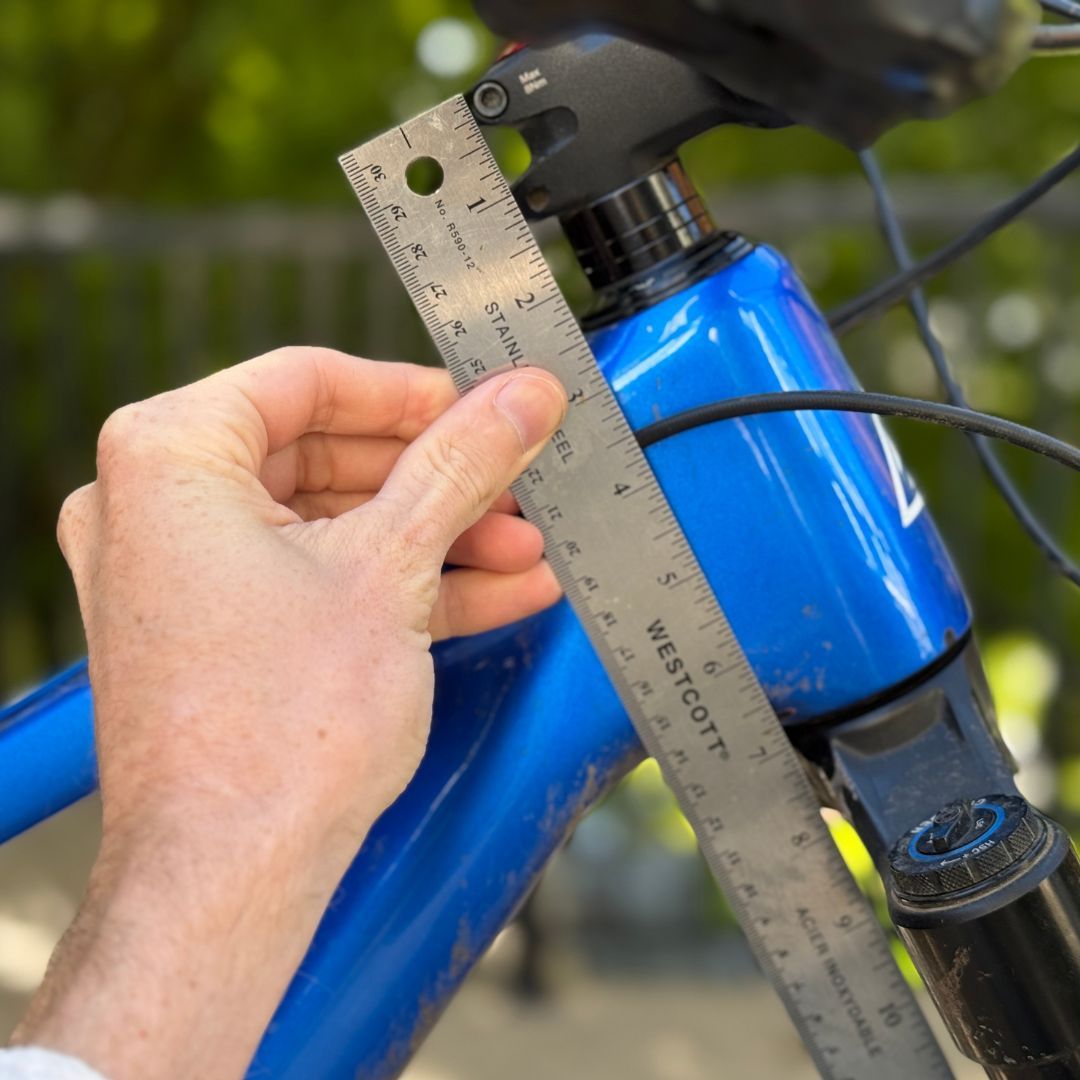

measure steerer tube

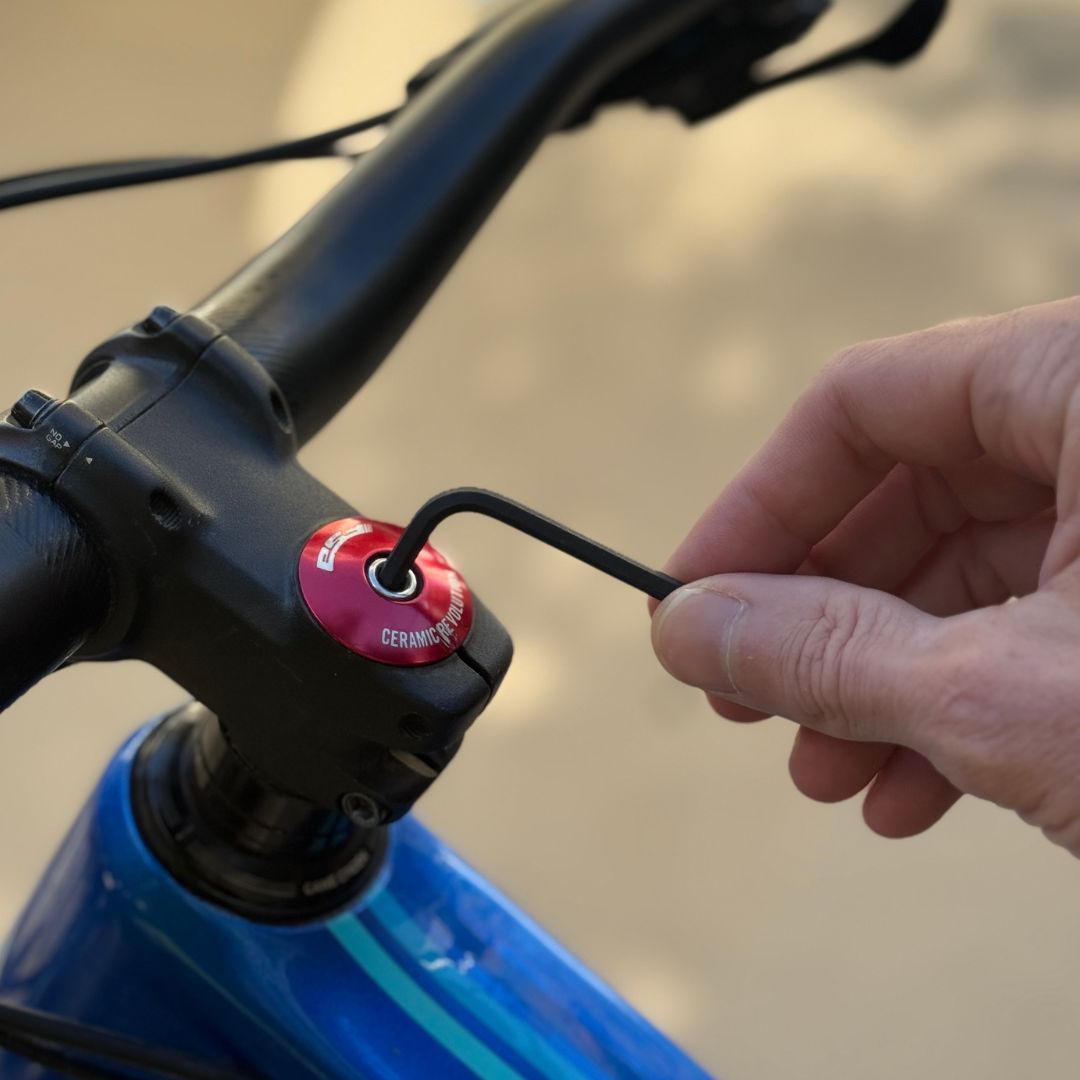

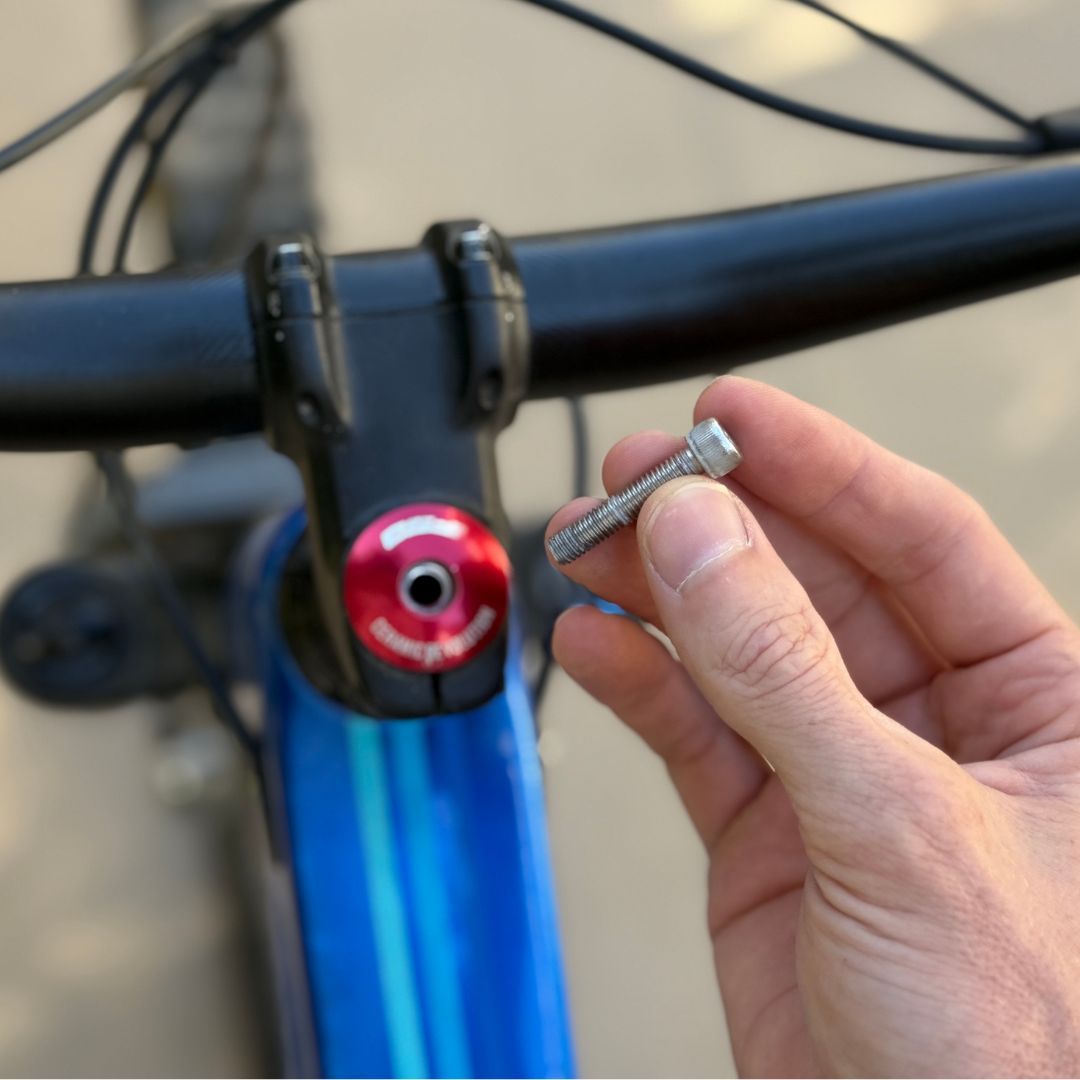

Step 1 - Remove the top cap bolt

Unscrew and remove the bolt from your bike’s top cap. Leave the cap in place and keep your stem bolts tight to maintain headset tension.

Snik_unscrew_top_cap_bolt
Snik_remove_stem_cap

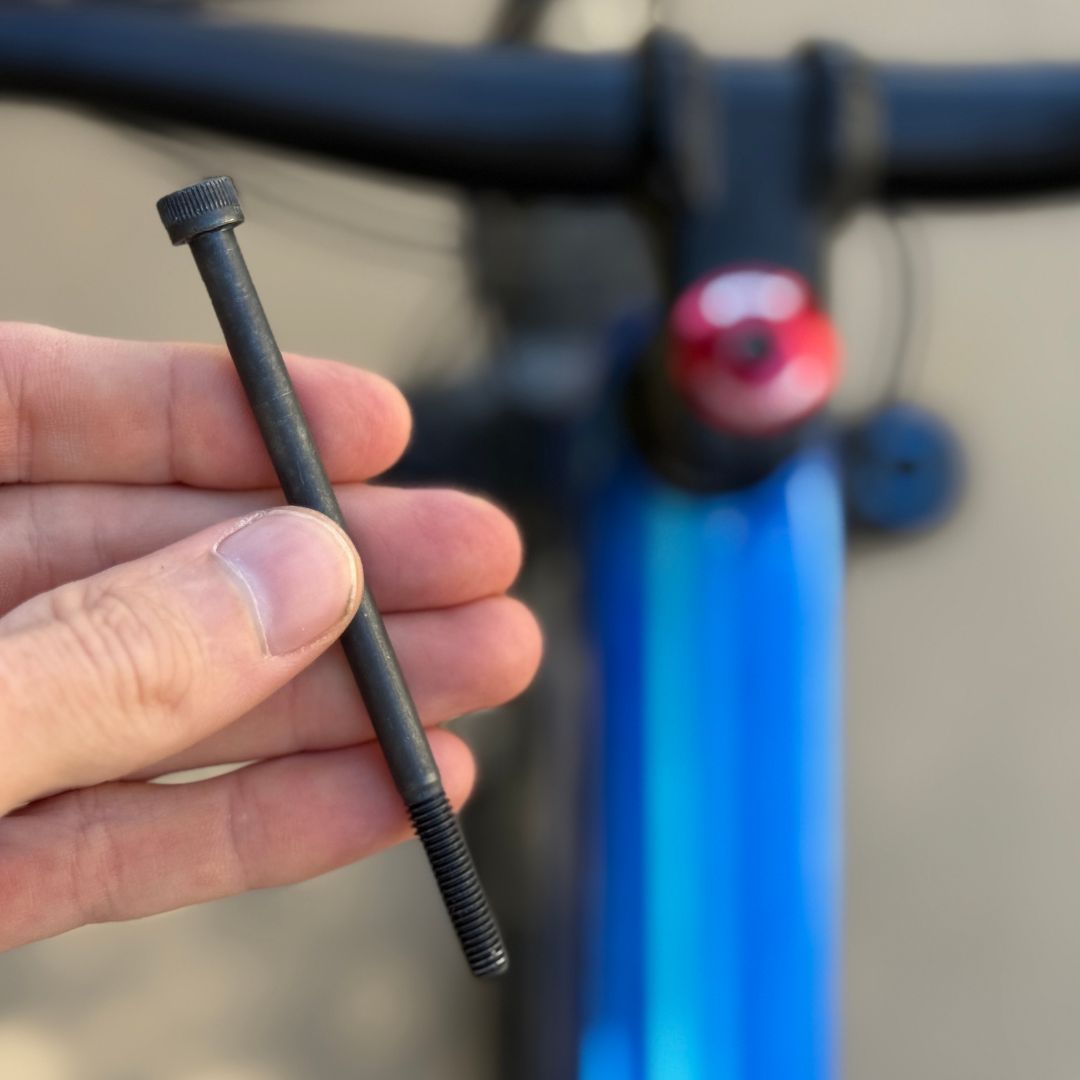

Step 2 - Thread the Bolt (D) through the top cap

Take the supplied Bolt (D) and thread it through your top cap and into the star nut.

Turn it ten full rotations to engage securely.

Snik_installation_bolt

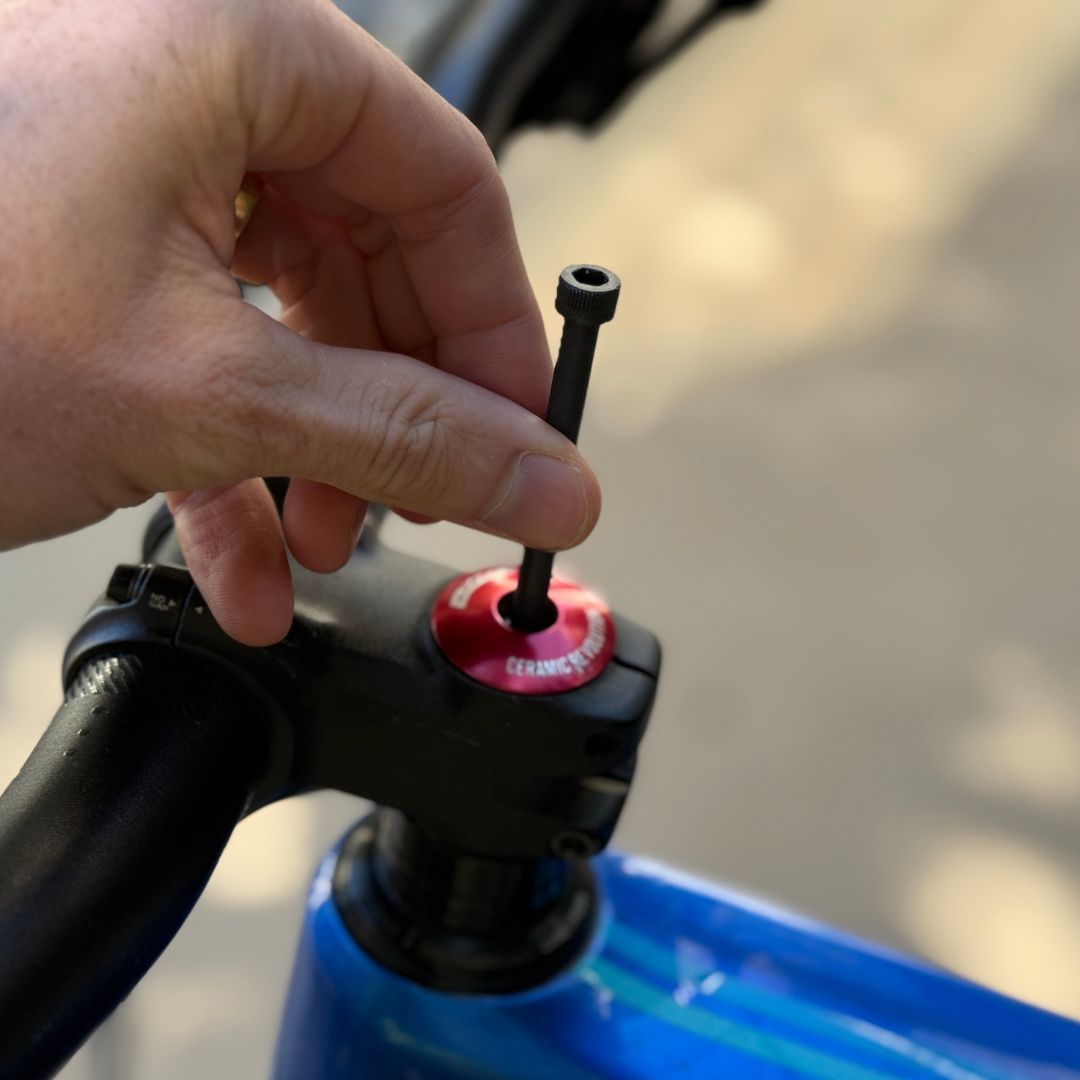

Snik_screw_in_installation_bolt

Step 3 - Lower the star nut

Use a mallet or hammer to carefully hit bolt (D) downward until it’s flush with the top cap. This moves your star nut deeper into the steerer tube.

**Keep the bolt vertical while hitting downward to avoid misalignment.

Snik_screw_in_installation_bolt

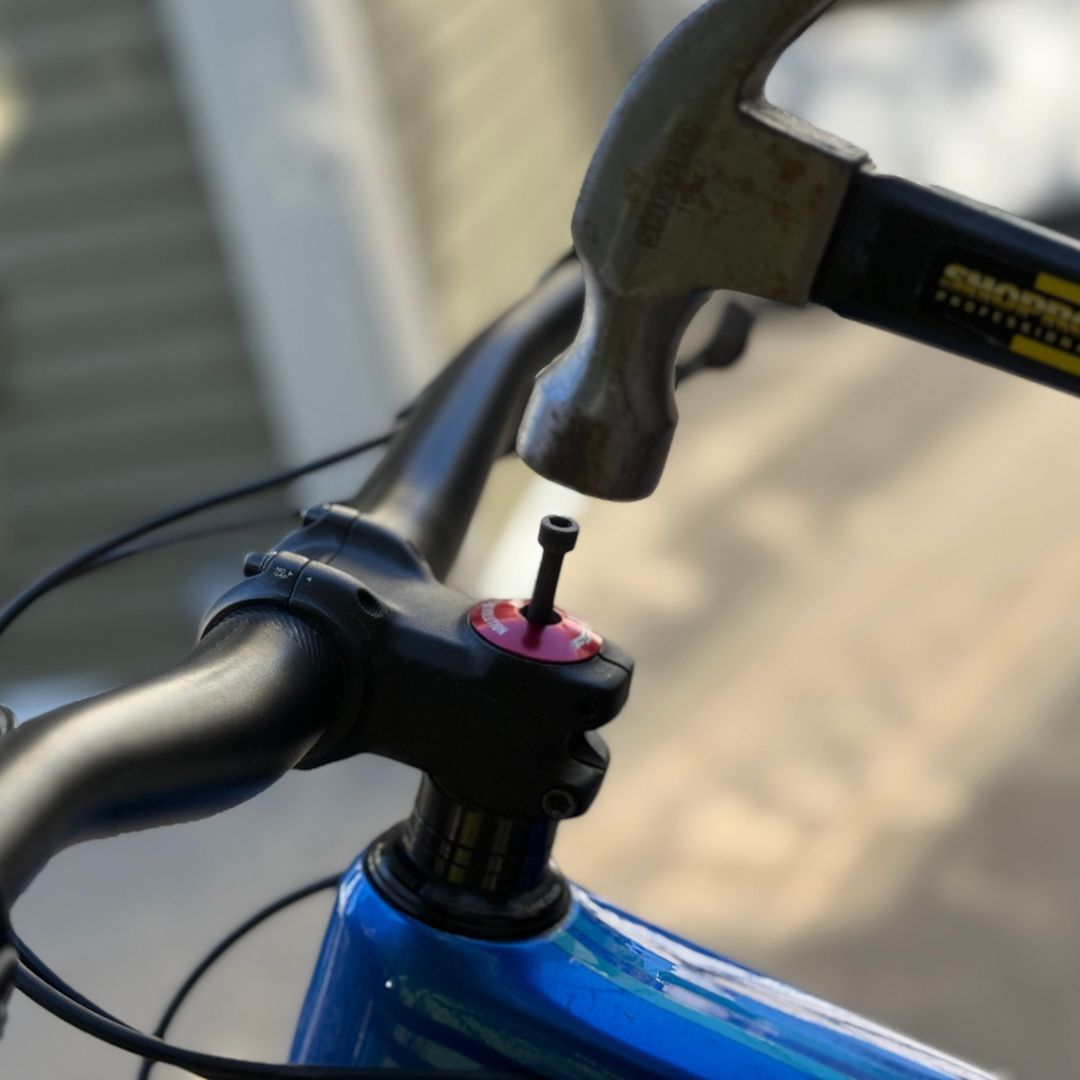

snik_hammer_bolt_to_lower_starnut

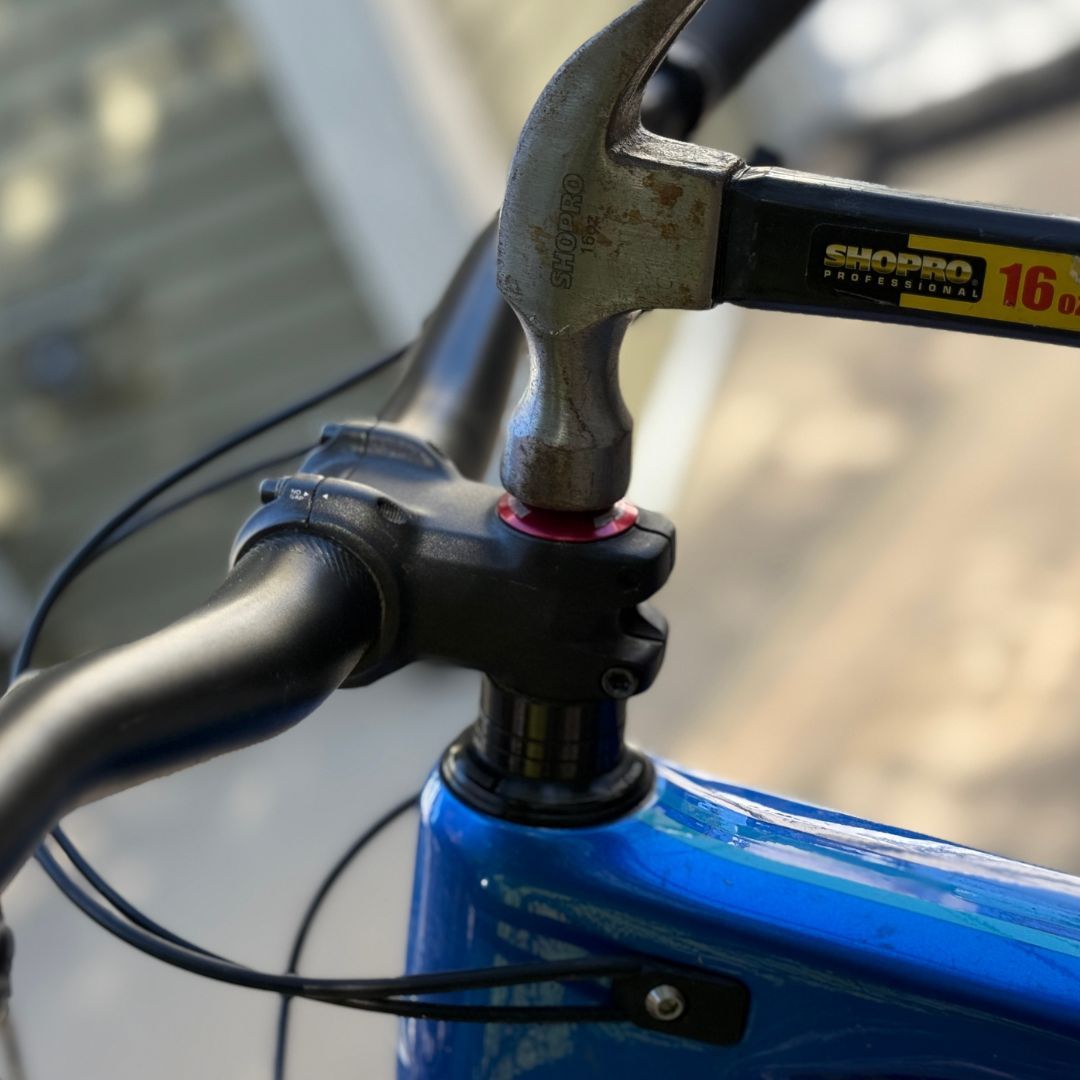

Snik_star_nut_lowered

Step 4 - Insert the Case

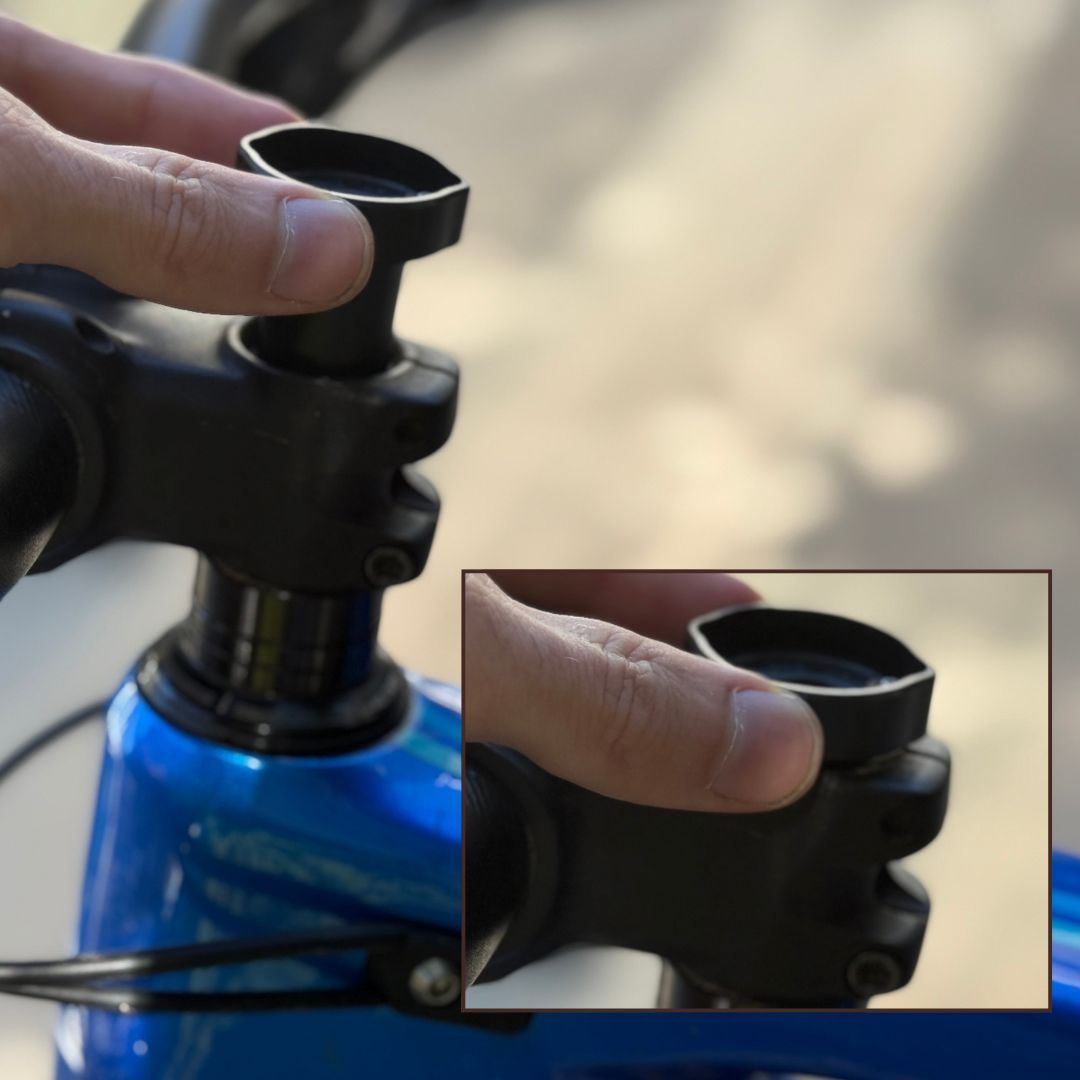

Remove the Bolt (D) and your top cap. Insert the Case (B) into the steerer tube with the threaded bushing facing upward toward you. The case (B) should sit neatly inside the tube.

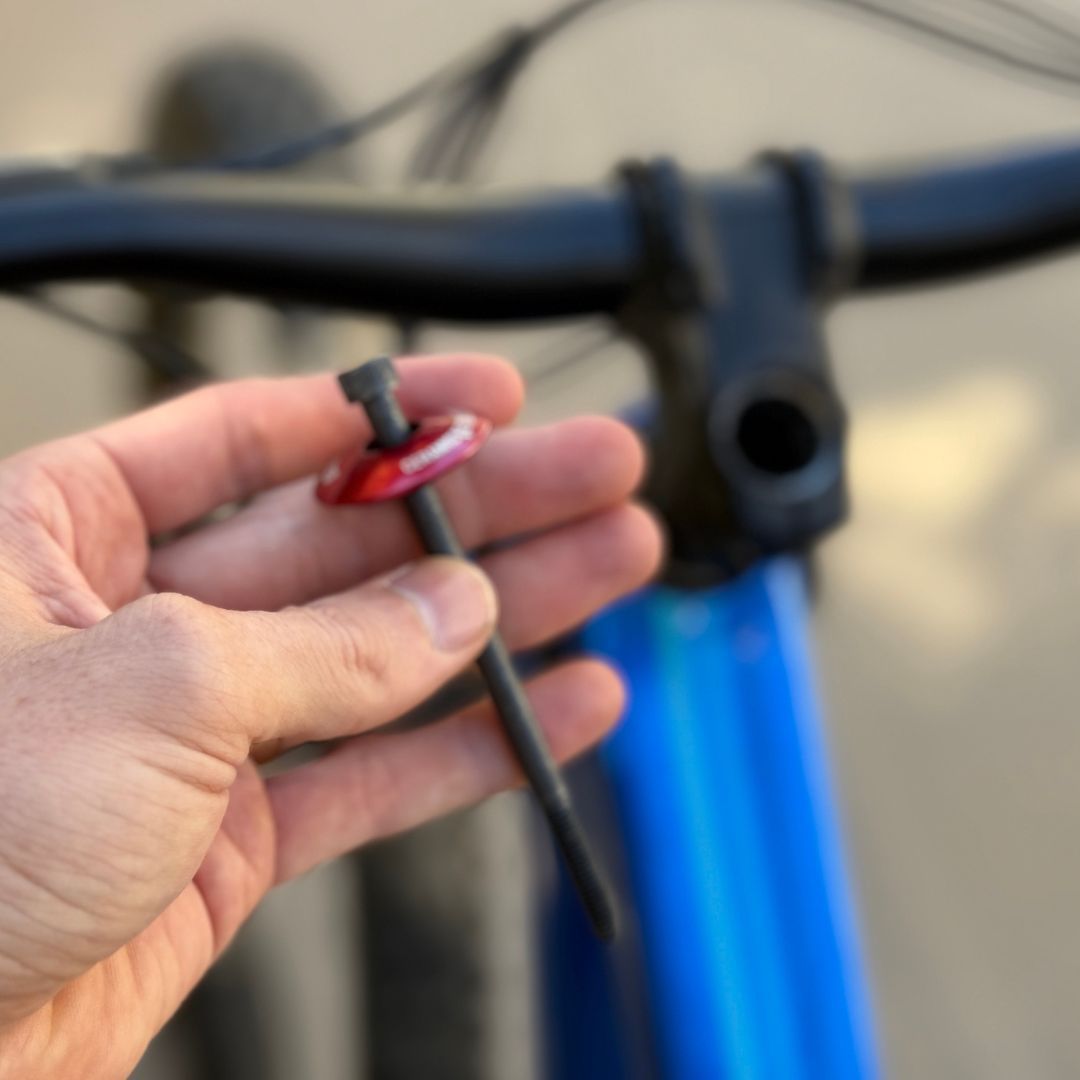

snik_remove_top_cap
Snik_drop_in_case

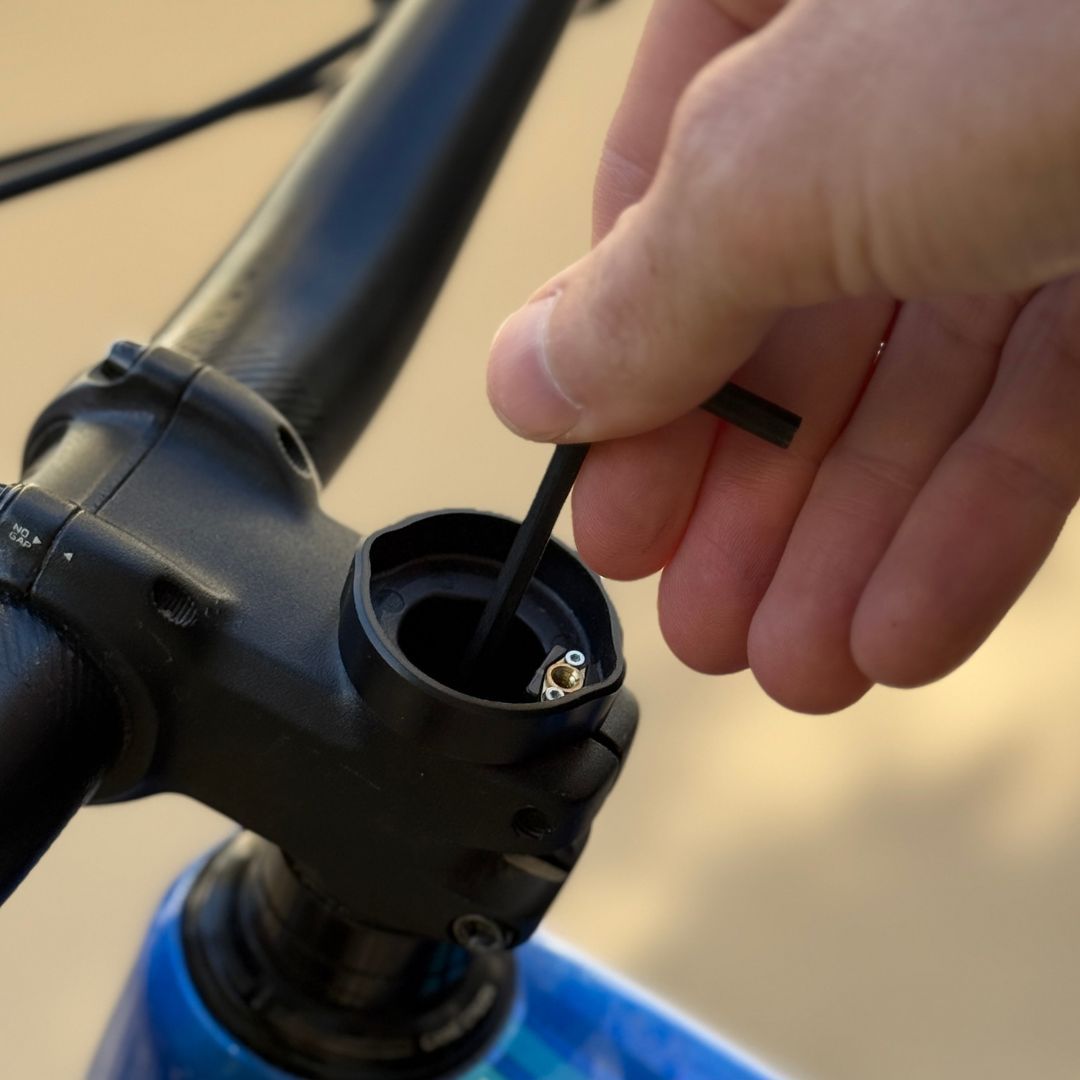

Step 5 - Connect the Case (B) to your star nut

Using a long-handle 4 mm hex key, tension the bolt already inside the Case (B) into the star nut.

    ** Tighten to a maximum of 2 Nm (hand-tight).

Snik_tension_case

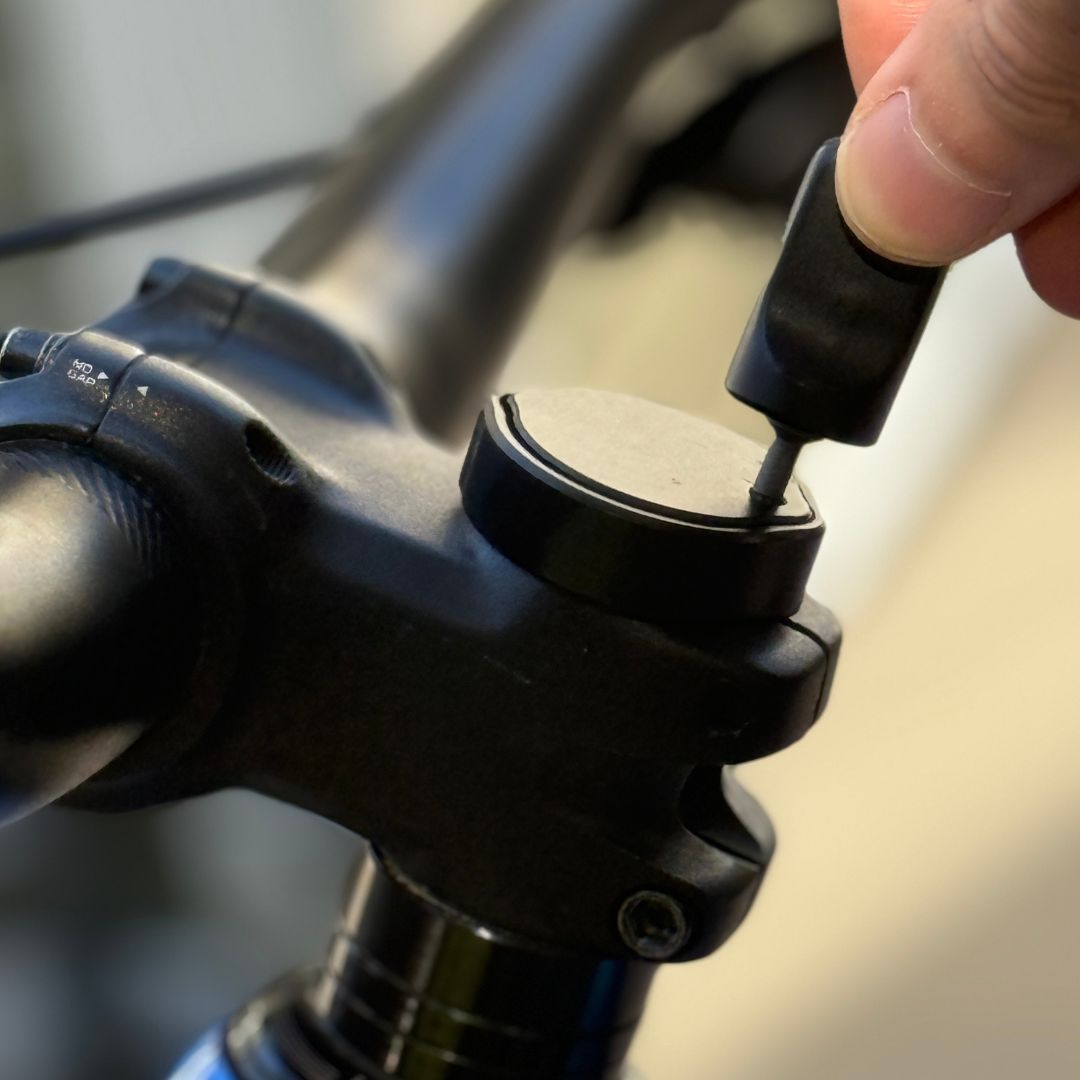

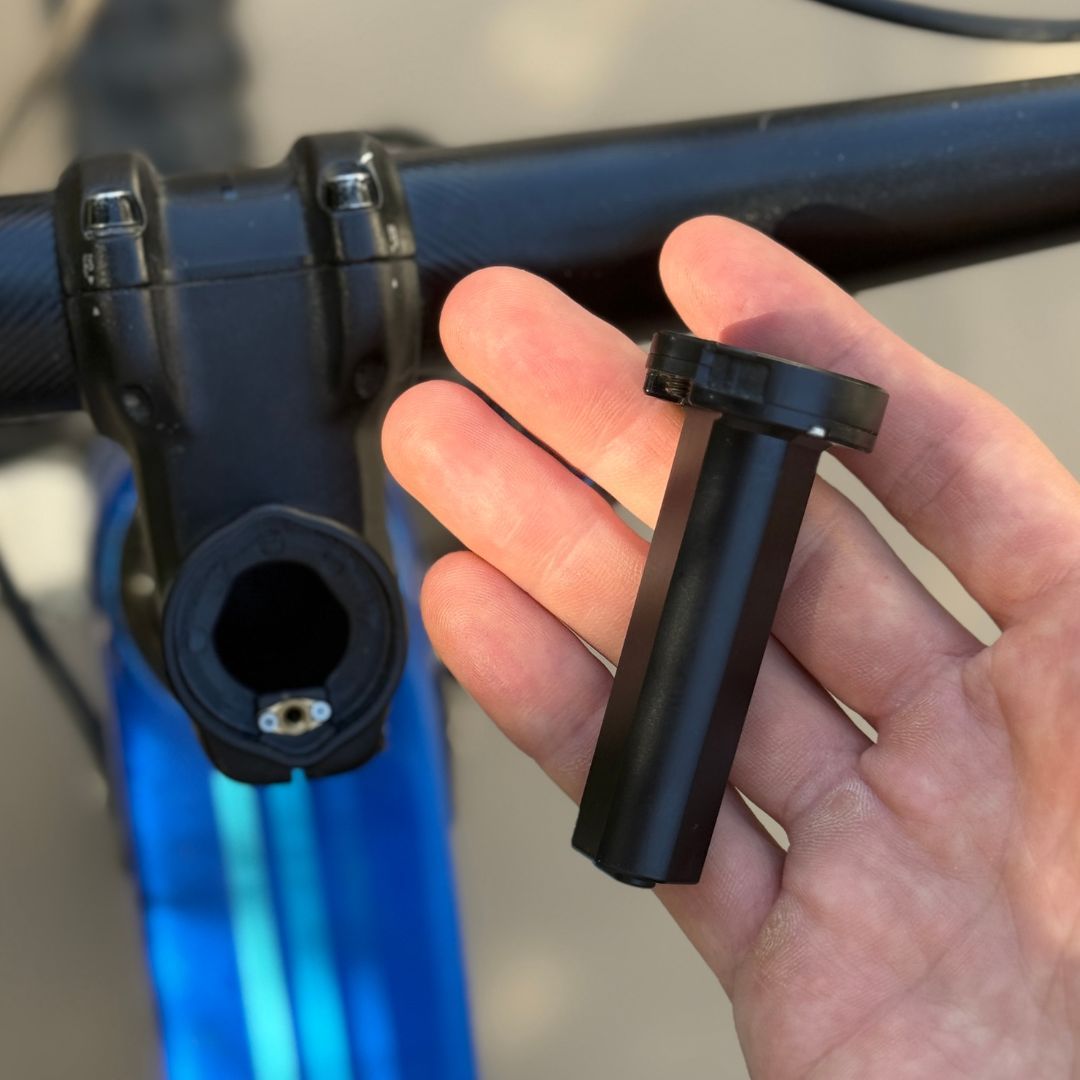

Step 6 - Insert your Snik Device (A)

Slide the Snik Device (A) into the Case (B). Use the supplied Key (C) to tighten it until the Device (A) sits flush with the Case (B).

Snik insert device
snik tighten device in case

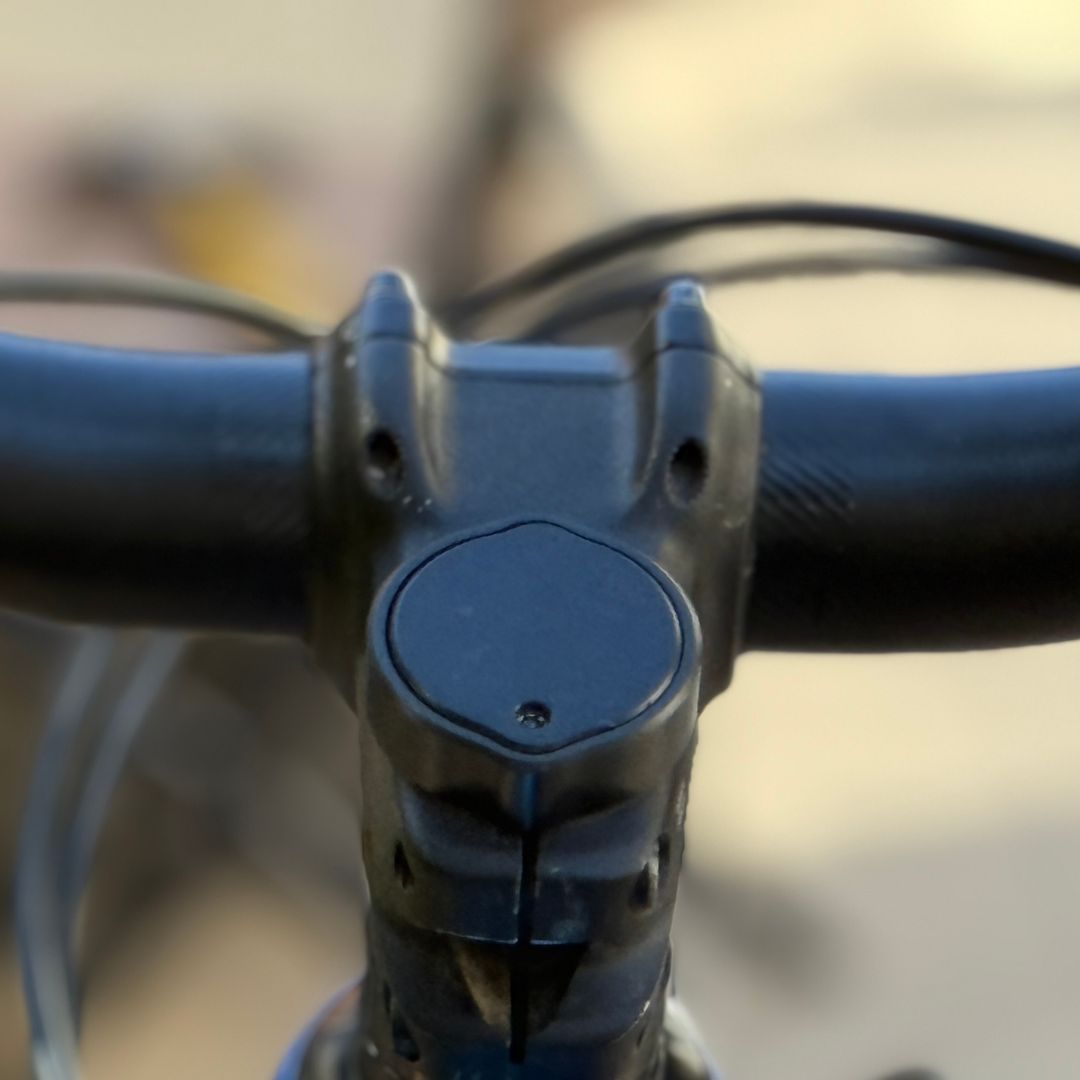

Snik Install Completed

Step 7 - Check your Installation

  1. Ensure the device sits flush with the case.
  2. Double-check your headset tension.
  3. Spin your bars to ensure smooth steering.
